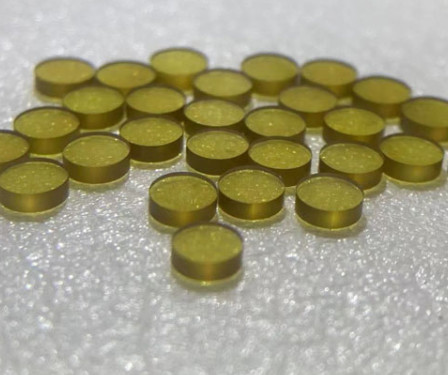

Developed using HPHT technology (high pressure, high temperature), synthetic hpht monocrystal diamond (MCD) is achieved by combining a mixture of carbon and transitional metals at very high pressures and temperatures
Advantage of MCD Diamond :
High hardness and wear resistance
High efficiency and low cost
High surface finish can be obtained on your workpiece
Application :
Super finishing and Miller finishing for Aluminum, Copper, Brass,
Gold, Nickel (Other Non Ferrous metals),Ultra Precision Cutting,
Clear Plastics
Specification
| Suggested application | MCD Cutting Tools |
| Model: | JSD23 |
| Crystal growth process: | Single crystal HPHT |
| Color: | Yellow and dark yellow |
| Usage | Cutting tools |
| sample | HPHT diamond for cutting tools |
| Quality | High quality |
| content | C |
| Feature | Wear Resistant |
| Applied fields | Industry |
| Orientation: | 4pt/100 |
| Shape: | Square or round |
| Size range: | 1.0mm -7.0 mm |
| Lateral Dimensions Measured | to smaller side |
| Edges | Natural growth |
| Edge Orientation | <100> edges |
| Corner Orientation | <111> |
| Face Orientation | {100} faces |
| Lateral Tolerance: | ‘+0.5/-0 mm |
| Surface Roughness, Ra | Polished, Ra < 30 nm |
| Thickness Tolerance | +/- 0.05 mm |
Shipping Deatils:
| Place Of Origin | Hunan. China |
| Delivery Time | 1 - 15 Working Days Base on Order Quantity |
| Payment Terms | 100% Payment In Advance |
| Shipping way | DHL.FedEx, SF Express,UPS,EMS,TNT etc |
| M.O.Q | Negotiable |
| Port | main port in China |
